Granite Slab Polishing Machines
SIMCOUSA is a supplier of Granite Slab Polishing Machines for the granite and stone industries. These stone polishing machines are primarily used to polish granite and marble countertop slabs during countertop fabrication. Below are samples of our best selling machines, from our complete line of large granite and stone machinery. Financing and leasing available on machinery subject to customer’s credit approval. Credit Application Form.
Call SIMCOUSA at 404-543-9107 and we will be happy to answer any questions you may have about stone polishing machines.

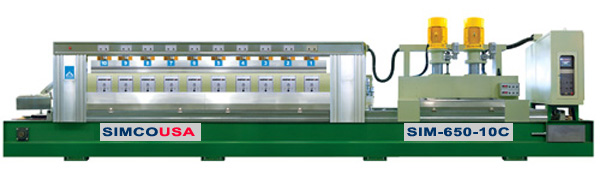

SIMCOUSA Slab Polishing Machine Model SIM-650-10C
The SIMCOUSA Slab Polishing Machine Model SIM-650-10C is designed for polishing granite and marble countertop slabs. This slab polishing machine has 2 calibrating heads, 10 polishing heads, and grinding and polishing heads can be custom ordered.
Specifications (To convert mm to inches multiply mm x .0394)
Useful working width: 650mm
Useful working thickness: 15-50mm
Belt advancement speed: 2770Mm/min
Power of grinding head: 22Kw
Power of polishing head: 7.5kw (10Hp)
Total power: 111.5Kw (150Hp)
Water consumption: 15M3/h
Overall dimensions(WxLxH): 2445x10184x2859 mm
Warranty: 1 year labor & parts

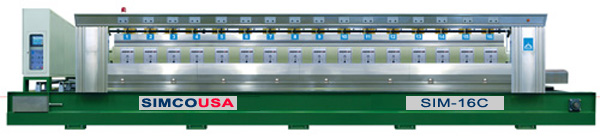

SIMCOUSA Stone Slab Polishing Machine Model SIM-16C
The SIMCOUSA Slab Polishing Machine Model SIM-16C is designed for polishing granite and marble countertop slabs. It performs pre-polish, rough-polish, finish-polish and burnish continuously. Custom grinding and polishing heads are available for this machine. The polishing spindle pressure is controlled by a coaxial cylinder according to the type of stone being polished. Control panel uses color touch screen programming to control slab profile sensors. The control system inspects and optimizes the movement of the polishing head, crossbeam and belt height for quality slab polishing. The machine has fault diagnosis and production data statistics systems.
Specifications (To convert mm to inches multiply mm x .0394)
Useful working width: 600-2000mm
Useful working thickness: 15-50mm
Belt advancement speed: 0-1600Mm/min
Spindle motor power: 11Kw (15Hp)
Total power: 181Kw (243Hp)
Water consumption: 25 M3/h
Overall dimensions(WxLxH): 2700x12690x2650mm
Warranty: 1 year labor & parts
Call SIMCOUSA at 404-543-9107 and we will be happy to answer any questions you may have about stone polishing machines.

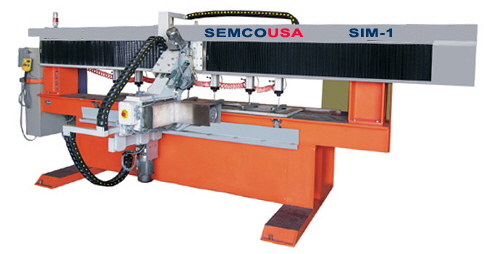

SIMCOUSA Stone Edge Polishing Machine Model DEGER SIM-1
The SIMCOUSA Edge Polishing Machine Model DEGER SIM-1 is designed to bevel and polish edges of granite and marble countertop slabs for countertop fabrication.
Specifications (To convert mm to inches multiply mm x .0394)
Useful working length: 3200mm
Useful working thickness: 20-50mm
Width of working table: 1000mm
Number of spindles 1
Forward speed: 0-60 m/10
Diamond and abrasives wheels diameter: 130mm
Power of spindles: 3Kw (4Hp)
Max power used: 3.75Kw (5Hp)
Double speed wheel rotation 1400/2800 rpm
Compressed air at 7 bar: 100l/min
Necessary water at 2 bar: 30l/min
Overall dimensions(WxLxH): 4700x1700x2200mm
Machine weight: 2300Kg
Warranty: 1 year labor & parts
Call SIMCOUSA at 404-543-9107 and we will be happy to answer any questions you may have about stone polishing machines.
SIMCOUSA also has used stone machines, slab polishing machines, used automatic edge polishing machines and used CNC machines by Comandulli, Intermac, Marmo Meccanica for the granite and stone fabricators. All used machinery is in excellent condition and ready to use. See all used stone machines and bridge saws.
